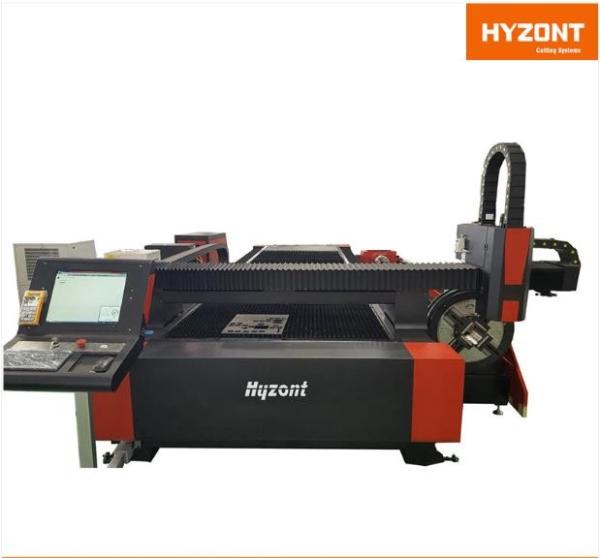

Product Description
1. High perfeomance. Fiber transmission can make sure the same quality cutting effect in every point of the material;
2. High efficiency. Fast cutting speed, photoelectric conversion rate is about 35%(CO2 photoelectric conversion rate is about 7%);
3. Low gas consumption. It has the cutting technology specially for steel board and produce no gas when cutting.
4. Low power consumption. Environment-friendly and energy-saving, low power consumotion(reduce 20%-30% power compared with CO2 laser cutting machine);
5. Maintenance free. Fiber transmission without reflection lens, can save time in light path adjustment.
6. Fiber exerts its features better in thin metal sheet cutting. Such as 1mm stainless steel, its cutting speed reach 12m/min. While 2mm stainless steel cutting speed readuce to 3.5m/min. The thicker metal sheet, the lower of the machine efficiency.
Specification
|
CONFIGURATION
| NAME |
HIGH-PRECISION CNC PLASMA CUTTING MACHINE |
| MODEL |
TNC-1530 |
| INPUT POWER |
AC 220V±10％／50／60Hz／0.5—1KW |
| CUTTING MODE |
PLASMA CUTTING |
| SPAN OF RAIL |
2200 MM |
| LENGTH OF RAIL |
3800 MM |
| CUTTING SIZE |
1500×3000 |
| LIFTING HEIGHT |
≤120 MM |
| STATION |
1 SET |
| TORCH*NO. |
PLASMA TORCH 1SET |
| CUTTING THICKNESS |
PLASMA : QUALITY CUTTING 20 MM
MAX. PIERCING : 22MM(Powermax 105)
|
| IDLE SPEED |
20—6000mm／min |
| CUTTING SPEED |
20—6000mm／min |
| DRIVER |
Y AXIS:2SET 86 STEPPER MOTOR
X AXIS:1SET , 86 STEPPER MOTOR
|
| CONTROL SYSTEM |
HYZONT-10A ( Upgrade 10 inch LCD Color Screen System) |
| AUTOMATIC ARC HEIGHT ADJUSTMENT DEVICE |
1 SET |
| OTHER CONFIGURATIONS |
Longitudinal and transverse pipeline tow chains |
| NESTING SOFTWARE |
FASTCAM |
| GUIDE RAIL FOUNDATION, CUTTING FRAME |
Steel frame and worktable integrated machine |
| PLASMA POWER SUPPLY |
Optional |
| PACKAGING |
Meeting long-distance transport requirements |
|
